senf::MIHFIdTLVParser Class Reference
Parse a MIHF_ID. More...#include <senf/Packets/80221Bundle/TLVParser.hh>
Detailed Description
Parse a MIHF_ID.Note that the maximum length of a MIHF_ID is 253 octets (see F.3.11 in 802.21) We could set maxLength in init(), but for the most MIHF_IDs the default maximum length of 128 should be enough.
- Note:
- you must call maxIdLength( 253) *before* setting MIHF_IDs values longer than 128.
- See also:
- MIHFId
Definition at line 179 of file TLVParser.hh.
Classes |
|
| struct | binaryNAIDecoder |
| struct | binaryNAIEncoder |
| struct | ValueEqualsVisitor |
| struct | ValueSetterVisitor |
Public Types |
|
| typedef MIHTLVLengthParser | idLength_t |
Public Member Functions |
|
| MIHTLVLengthParser::value_type | idLength () const |
| void | dump (std::ostream &os) const |
| void | maxIdLength (boost::uint8_t maxl) const |
| void | finalize () |
| shrink size of the TLV length field to minimum |
|
Value setters |
|
| void | value (MIHFId const &id) |
| void | value (std::string const &id) |
| void | value (senf::MACAddress const &addr) |
| void | value (senf::INet4Address const &addr) |
| void | value (senf::INet6Address const &addr) |
| void | value (senf::EUI64 const &addr) |
Value getters |
|
| MIHFId | valueAs (MIHFId::Type type) const |
| std::string | valueAsString () const |
| senf::MACAddress | valueAsMACAddress () const |
| senf::INet4Address | valueAsINet4Address () const |
| senf::INet6Address | valueAsINet6Address () const |
| senf::EUI64 | valueAsEUI64 () const |
Value comparisons |
|
| bool | valueEquals (MIHFId const &id) const |
| bool | valueEquals (std::string const &id) const |
| bool | valueEquals (senf::MACAddress const &addr) const |
| bool | valueEquals (senf::INet4Address const &addr) const |
| bool | valueEquals (senf::INet6Address const &addr) const |
| bool | valueEquals (senf::EUI64 const &addr) const |
Protected Member Functions |
|
| MIHTLVLengthParser | idLength_ () const |
Member Typedef Documentation
| typedef MIHTLVLengthParser senf::MIHFIdTLVParser:: | ||||
| idLength_t | ||||
Definition at line 183 of file TLVParser.hh.
Member Function Documentation
| void senf::MIHFIdTLVParser:: | ||||
| dump | ( | std::ostream & | os | ) |

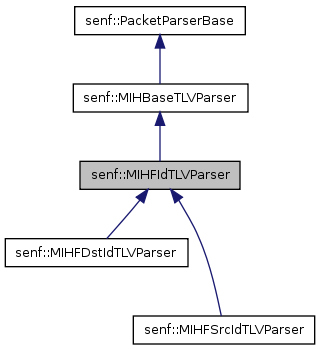

Reimplemented in senf::MIHFSrcIdTLVParser, and senf::MIHFDstIdTLVParser.
Definition at line 75 of file TLVParser.cc.
| void senf::MIHFIdTLVParser:: | ||||
| finalize | () | |||
shrink size of the TLV length field to minimum
The size of the length field will be decreased to minimum necessary to hold the current length value.
Reimplemented from senf::MIHBaseTLVParser.
Definition at line 86 of file TLVParser.cc.
| MIHTLVLengthParser ::value_type senf::MIHFIdTLVParser:: | ||||
| idLength | () | |||
| MIHTLVLengthParser senf::MIHFIdTLVParser:: | ||||
| idLength_ | () | |||
| void senf::MIHFIdTLVParser:: | ||||
| maxIdLength | ( | boost::uint8_t | maxl | ) |
Definition at line 93 of file TLVParser.cc.
| void senf::MIHFIdTLVParser:: | ||||
| value | ( | senf::EUI64 const & | addr | ) |
Definition at line 146 of file TLVParser.cc.
| void senf::MIHFIdTLVParser:: | ||||
| value | ( | senf::INet6Address const & | addr | ) |
Definition at line 140 of file TLVParser.cc.
| void senf::MIHFIdTLVParser:: | ||||
| value | ( | senf::INet4Address const & | addr | ) |
Definition at line 134 of file TLVParser.cc.
| void senf::MIHFIdTLVParser:: | ||||
| value | ( | senf::MACAddress const & | addr | ) |
Definition at line 128 of file TLVParser.cc.
| void senf::MIHFIdTLVParser:: | ||||
| value | ( | std::string const & | id | ) |
Definition at line 118 of file TLVParser.cc.
| void senf::MIHFIdTLVParser:: | ||||
| value | ( | MIHFId const & | id | ) |
Definition at line 152 of file TLVParser.cc.
| senf::MIHFId senf::MIHFIdTLVParser:: | ||||
| valueAs | ( | MIHFId::Type | type | ) |
Definition at line 157 of file TLVParser.cc.
| senf::EUI64 senf::MIHFIdTLVParser:: | ||||
| valueAsEUI64 | () | |||
Definition at line 99 of file TLVParser.cci.
| senf::INet4Address senf::MIHFIdTLVParser:: | ||||
| valueAsINet4Address | () | |||
Definition at line 83 of file TLVParser.cci.
| senf::INet6Address senf::MIHFIdTLVParser:: | ||||
| valueAsINet6Address | () | |||
Definition at line 91 of file TLVParser.cci.
| senf::MACAddress senf::MIHFIdTLVParser:: | ||||
| valueAsMACAddress | () | |||
Definition at line 75 of file TLVParser.cci.
| std::string senf::MIHFIdTLVParser:: | ||||
| valueAsString | () | |||
Definition at line 69 of file TLVParser.cci.
| bool senf::MIHFIdTLVParser:: | ||||
| valueEquals | ( | senf::EUI64 const & | addr | ) |
Definition at line 131 of file TLVParser.cci.
| bool senf::MIHFIdTLVParser:: | ||||
| valueEquals | ( | senf::INet6Address const & | addr | ) |
Definition at line 125 of file TLVParser.cci.
| bool senf::MIHFIdTLVParser:: | ||||
| valueEquals | ( | senf::INet4Address const & | addr | ) |
Definition at line 119 of file TLVParser.cci.
| bool senf::MIHFIdTLVParser:: | ||||
| valueEquals | ( | senf::MACAddress const & | addr | ) |
Definition at line 113 of file TLVParser.cci.
| bool senf::MIHFIdTLVParser:: | ||||
| valueEquals | ( | std::string const & | id | ) |
Definition at line 107 of file TLVParser.cci.
| bool senf::MIHFIdTLVParser:: | ||||
| valueEquals | ( | MIHFId const & | id | ) |
Definition at line 137 of file TLVParser.cci.
The documentation for this class was generated from the following files:
- 80221Bundle/TLVParser.hh
- 80221Bundle/TLVParser.cc
- 80221Bundle/TLVParser.cci
- 80221Bundle/TLVParser.cti
