senf::MACAddress Struct Reference
[Addressing classes]

Ethernet MAC address. More...

#include <senf/Socket/Protocols/Raw/MACAddress.hh>

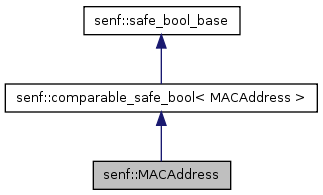

Inheritance diagram for senf::MACAddress:
Inheritance graph
[legend]

List of all members.

Detailed Description

Ethernet MAC address.

The Ethernet MAC is modeled as a fixed-size container/sequence of 6 bytes. A MACAddress can be converted from/to the following representations

boost::uint64_t senf::MACAddress(0x112233445566ull)
mac.uint64()
std::string senf::MACAddress::from_string("11:22:33:44:55:66")
senf::str(mac)
raw data
    (6 bytes)		 senf::MACAddress::from_data(iterator)
mac.begin()
senf::EUI64 senf::MACAddress::from_eui64(eui64)
senf::EUI64::from_mac(mac)

Since MACAddress is based on boost::array, you can access the raw data bytes of the address using begin(), end() or operator[]:

senf::MACAddress mac (...);
std::vector<char> data;
data.resize(6);
std::copy(mac.begin(), mac.end(), data.begin()); // Copy 6 bytes
Implementation note:
We awkwardly need to use static named constructors (from_ members) instead of ordinarily overloaded constructors for one simple reason: char * doubles as string literal and as arbitrary data iterator. The iterator constructor can therefore not be distinguished from initialization with a string literal. Therefore we need to disambiguate using the named constructors.

Definition at line 82 of file MACAddress.hh.


Public Member Functions
  MACAddress ()
  Construct zero-initialized address.
  MACAddress (senf::NoInit_t)
  Construct uninitialized (!) address.
  MACAddress (boost::uint64_t v)
  Construct MACAddress constants.
bool  local () const
  true, if address is locally administered
bool  multicast () const
  true, if address is a group/multicast address
bool  broadcast () const
  true, if address is the broadcast address
bool  boolean_test () const
  true, if address is not the zero address
boost::uint32_t  oui () const
  Return first 3 bytes of the address.
boost::uint32_t  nic () const
  Return last 3 bytes of the address.
boost::uint64_t  eui64 () const
  Build EUI-64 from the MAC address.
boost::uint64_t  uint64 () const
  Return MAC address as uint64 value.

Static Public Member Functions
static MACAddress  from_string (std::string const &s)
  Construct address from string representation.
template<class InputIterator >
static MACAddress  from_data (InputIterator i)
  Construct address from raw data.
static MACAddress  from_eui64 (senf::EUI64 const &eui)
  Construct address from EUI-64.

Static Public Attributes
static MACAddress const  Broadcast = senf::MACAddress(0xFFFFFFFFFFFFull)
  The broadcast address.
static MACAddress const  None
  The empty (0) address.

Related Functions
(Note that these are not member functions.)
std::ostream &  operator<< (std::ostream &os, MACAddress const &mac)
  Output MAC instance as it's string representation.
std::istream &  operator>> (std::istream &os, MACAddress &mac)
  Try to initialize MACAddress instance from a string representation sets std::ios::failbit on the stream if an error occurred.

Constructor & Destructor Documentation

senf::MACAddress::
MACAddress ()

Construct zero-initialized address.

Definition at line 37 of file MACAddress.cci.

senf::MACAddress::
MACAddress ( senf::NoInit_t  )

Construct uninitialized (!) address.

Definition at line 42 of file MACAddress.cci.

senf::MACAddress::
MACAddress ( boost::uint64_t  v )

Construct MACAddress constants.

Definition at line 45 of file MACAddress.cci.

Member Function Documentation

bool senf::MACAddress::
boolean_test ()

true, if address is not the zero address

Definition at line 74 of file MACAddress.cci.

bool senf::MACAddress::
broadcast ()

true, if address is the broadcast address

Definition at line 67 of file MACAddress.cci.

boost::uint64_t senf::MACAddress::
eui64 ()

Build EUI-64 from the MAC address.

Definition at line 99 of file MACAddress.cci.

template<class InputIterator >
senf::MACAddress senf::MACAddress::
from_data ( InputIterator  i )

Construct address from raw data.

Copies the data from i into the MAC address.

Precondition:
The input range at i must have a size of at least 6 elements.

Definition at line 38 of file MACAddress.ct.

senf::MACAddress senf::MACAddress::
from_eui64 ( senf::EUI64 const &  eui )

Construct address from EUI-64.

This constructor takes an EUI-64 value and converts it to a MAC address. This conversion is only possible, if the EUI-64 is MAC compatible: the 4th/5th byte (in transmission order) must be 0xFFFE.

Exceptions:
AddressSyntaxException  if eui is not a MAC compatible EUI-64.

Definition at line 50 of file MACAddress.cc.

senf::MACAddress senf::MACAddress::
from_string ( std::string const &  s )

Construct address from string representation.

The string representation must exactly match the form dd:dd:dd:dd:dd:dd where d is any hexadecimal digit. In place of ':', '-' is also accepted as a delimiter.

Exceptions:
AddressSyntaxException

Definition at line 43 of file MACAddress.cc.

bool senf::MACAddress::
local ()

true, if address is locally administered

Definition at line 55 of file MACAddress.cci.

bool senf::MACAddress::
multicast ()

true, if address is a group/multicast address

Definition at line 61 of file MACAddress.cci.

boost::uint32_t senf::MACAddress::
nic ()

Return last 3 bytes of the address.

Definition at line 90 of file MACAddress.cci.

boost::uint32_t senf::MACAddress::
oui ()

Return first 3 bytes of the address.

Definition at line 81 of file MACAddress.cci.

boost::uint64_t senf::MACAddress::
uint64 ()

Return MAC address as uint64 value.

Definition at line 112 of file MACAddress.cci.

Friends And Related Function Documentation

std::ostream &
operator<< ( std::ostream &  os,
MACAddress const &  mac )

Output MAC instance as it's string representation.

std::istream &
operator>> ( std::istream &  os,
MACAddress &  mac )

Try to initialize MACAddress instance from a string representation sets std::ios::failbit on the stream if an error occurred.

See also:
MACAddress from_string()

Member Data Documentation

senf::MACAddress const senf::MACAddress::Broadcast = senf::MACAddress(0xFFFFFFFFFFFFull)
[static]

The broadcast address.

Definition at line 86 of file MACAddress.hh.

senf::MACAddress const senf::MACAddress::None
[static]

The empty (0) address.

Definition at line 87 of file MACAddress.hh.

The documentation for this struct was generated from the following files:
