senf::term::BaseEditor Class Reference

Provide editor support terminal functionality. More...

#include <senf/Utils/Termlib/Editor.hh>

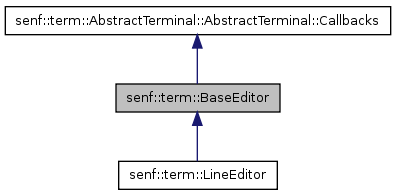

Inheritance diagram for senf::term::BaseEditor:

[legend]

List of all members.

---

Detailed Description

Provide editor support terminal functionality.

This base class utilizes an arbitrary AbstractTerminal and provides terminfo based terminal navigation and key parsing.

All navigation is relative to the current line. The display area can then be extended downwards up to a maximum of height() lines. Resetting this extended display area will return to a one line area containing only the top line.

All navigation is restricted to a width() x height() area. The last column may not be written to since auto-margin terminals will move the cursor to the next line when writing to that column.

This base class calls v_keyReceived() which must be defined in a derived class whenever a key is fully parsed.

Definition at line 60 of file Editor.hh.

Public Types
typedef KeyParser::keycode_t	keycode_t
Public Member Functions
	BaseEditor (AbstractTerminal &terminal)
void	newline ()
	Move to beginning of a new, empty line.
void	toColumn (unsigned c)
	Move cursor to column c.
void	put (char ch)
	Write ch at current column.
void	put (std::string const &text)
	Write text starting at current column.
void	clearLine ()
	Clear current line and move cursor to first column.
void	setBold ()
	Set bold char display.
void	setNormal ()
	Set normal char display.
void	maybeClrScr ()
	Clear screen if possible.
void	toLine (unsigned l)
	Move to relative display line l.
void	reset ()
	Reset display area to single line.
unsigned	currentColumn () const
	Return number of current column.
unsigned	currentLine () const
	Return number of current relative line.
unsigned	width () const
	Return current screen width.
unsigned	height () const
	Return current screen height.
Static Public Attributes
static unsigned const	DEFAULT_KEY_TIMEOUT_MS = 500u
Protected Member Functions
virtual bool	cb_init ()
	Called when terminal is initialized.
virtual void	cb_windowSizeChanged ()
	Called whenever the terminal window size changes.
virtual void	v_keyReceived (keycode_t key)=0
	Called whenever a key is received.

---

Member Typedef Documentation

typedef KeyParser::keycode_t senf::term::BaseEditor::
keycode_t

Definition at line 64 of file Editor.hh.

---

Constructor & Destructor Documentation

senf::term::BaseEditor::
BaseEditor	(	AbstractTerminal &	terminal	)

Definition at line 37 of file Editor.cc.

---

Member Function Documentation

bool senf::term::BaseEditor::
cb_init	()

Called when terminal is initialized.

Implements senf::term::AbstractTerminal::AbstractTerminal::Callbacks.

Definition at line 199 of file Editor.cc.

void senf::term::BaseEditor::
cb_windowSizeChanged	()

Called whenever the terminal window size changes.

Implements senf::term::AbstractTerminal::AbstractTerminal::Callbacks.

Definition at line 227 of file Editor.cc.

void senf::term::BaseEditor::
clearLine	()

Clear current line and move cursor to first column.

Definition at line 107 of file Editor.cc.

unsigned senf::term::BaseEditor::
currentColumn	()

Return number of current column.

Definition at line 187 of file Editor.cc.

unsigned senf::term::BaseEditor::
currentLine	()

Return number of current relative line.

Definition at line 193 of file Editor.cc.

unsigned senf::term::BaseEditor::
height	()

Return current screen height.

Definition at line 261 of file Editor.cc.

void senf::term::BaseEditor::
maybeClrScr	()

Clear screen if possible.

Definition at line 128 of file Editor.cc.

void senf::term::BaseEditor::
newline	()

Move to beginning of a new, empty line.

Definition at line 47 of file Editor.cc.

void senf::term::BaseEditor::
put	(	std::string const &	text	)

Write text starting at current column.

Definition at line 95 of file Editor.cc.

void senf::term::BaseEditor::
put	(	char	ch	)

Write ch at current column.

Definition at line 87 of file Editor.cc.

void senf::term::BaseEditor::
reset	()

Reset display area to single line.

Definition at line 177 of file Editor.cc.

void senf::term::BaseEditor::
setBold	()

Set bold char display.

Definition at line 114 of file Editor.cc.

void senf::term::BaseEditor::
setNormal	()

Set normal char display.

Definition at line 121 of file Editor.cc.

void senf::term::BaseEditor::
toColumn	(	unsigned	c	)

Move cursor to column c.

Definition at line 55 of file Editor.cc.

void senf::term::BaseEditor::
toLine	(	unsigned	l	)

Move to relative display line l.

Definition at line 134 of file Editor.cc.

virtual void senf::term::BaseEditor::
v_keyReceived	(	keycode_t	key	)

Called whenever a key is received.

unsigned senf::term::BaseEditor::
width	()

Return current screen width.

Definition at line 255 of file Editor.cc.

---

Member Data Documentation

unsigned const senf::term::BaseEditor::DEFAULT_KEY_TIMEOUT_MS = 500u
[static]

Definition at line 66 of file Editor.hh.

---

The documentation for this class was generated from the following files:

• Editor.hh
• Editor.cc
