senf::TCPv4SocketProtocol Class Reference
[Protocol Implementations (Concrete Protocol Classes)]

IPv4 TCP Socket Protocol. More...

#include <senf/Socket/Protocols/INet/TCPSocketHandle.hh>

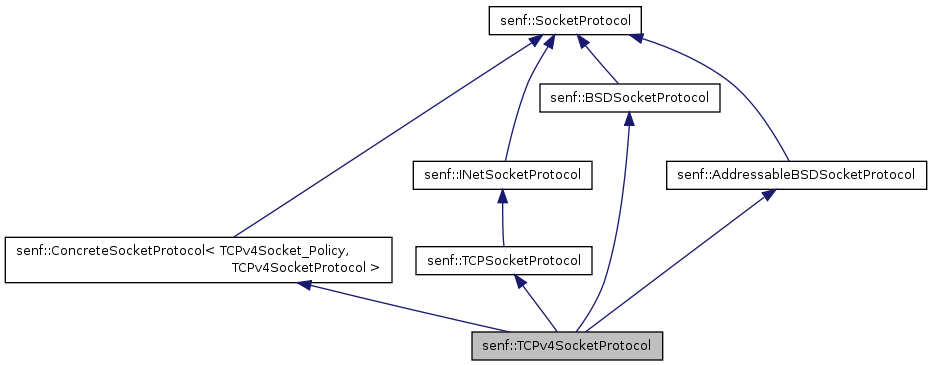

Inheritance diagram for senf::TCPv4SocketProtocol:

[legend]

List of all members.

---

Detailed Description

IPv4 TCP Socket Protocol.

Socket Handle typedefs:

TCPv4ClientSocketHandle (ProtocolClientSocketHandle), TCPv4ServerSocketHandle (ProtocolServerSocketHandle)

Policy Interface:

ClientSocketHandle::read(), ClientSocketHandle::write(), ClientSocketHandle::bind(), ClientSocketHandle::local(), ClientSocketHandle::connect(), ClientSocketHandle::peer()

Address Type:

INet4SocketAddress

TCPv4SocketProtocol provides an internet protocol stream socket based on the TCP protocol and IPv4 addressing.

This class is utilized as the protocol class of the ProtocolClientSocketHandle and ProtocolServerSocketHandle via the Socket Handle typedefs above.

See also:

TCPv6SocketProtocol

Definition at line 81 of file TCPSocketHandle.hh.

Constructors
void	init_client () const
	Create unconnected client socket.
void	init_client (INet4SocketAddress const &address) const
	Create client socket and connect.
void	init_server () const
	Create server socket.
void	init_server (INet4SocketAddress const &address, unsigned backlog=1) const
	Create server socket and listen.

---

Member Function Documentation

void senf::TCPv4SocketProtocol::
init_client	(	INet4SocketAddress const &	address	)

Create client socket and connect.

Creates a new client socket and connects to the given address.

Parameters:

[in]

address

remote address to connect to

Note:

This member is implicitly called from the ProtocolClientSocketHandle::ProtocolClientSocketHandle() constructor

Definition at line 54 of file TCPSocketHandle.cc.

void senf::TCPv4SocketProtocol::
init_client	()

Create unconnected client socket.

Note:

This member is implicitly called from the ProtocolClientSocketHandle::ProtocolClientSocketHandle() constructor

Definition at line 44 of file TCPSocketHandle.cc.

void senf::TCPv4SocketProtocol::
init_server	(	INet4SocketAddress const &	address,
		unsigned	backlog = 1	)

Create server socket and listen.

Creates a new server socket, binds to address end starts listening for new connections with a backlog of backlog connections. It also enables reuseaddr().

Parameters:

[in]	address	address to listen on
[in]	backlog	size of the listen backlog

Note:

This member is implicitly called from the ProtocolServerSocketHandle::ProtocolServerSocketHandle() constructor

Definition at line 70 of file TCPSocketHandle.cc.

void senf::TCPv4SocketProtocol::
init_server	()

Create server socket.

Note:

This member is implicitly called from the ProtocolServerSocketHandle::ProtocolServerSocketHandle() constructor

Definition at line 61 of file TCPSocketHandle.cc.

---

The documentation for this class was generated from the following files:

• Protocols/INet/TCPSocketHandle.hh
• Protocols/INet/TCPSocketHandle.cc
