senf::INet6SocketAddress Class Reference
[Addressing classes]

IPv6 socket address. More...

#include <senf/Socket/Protocols/INet/INetAddressing.hh>

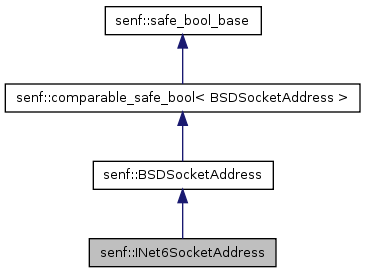

Inheritance diagram for senf::INet6SocketAddress:

[legend]

List of all members.

---

Detailed Description

IPv6 socket address.

This class wraps the standard sockaddr_in6 structure. INet6SocketAddress provides access to all members of the sockaddr_in6 structure. Additionally, INet6SocketAddress supports the string representations

[ address [ % zone-id ] ]: port
hostname : port

Where address is an arbitrary numeric IPv6 address, zone-id is an optional network interface name and port is the port number. So some example addresses are

[2001:db8:1::1]:80
www.go6.net:80
[fe80::1%eth0]:443

Implementation note:

The sockaddr_in6 structure has an sin6_flowinfo member. However RFC3493 does not give the use of this field and specifies, that the field should be ignored ... so that's what we do. Furthermore, the GNU libc reference states, that this field is not implemented in the library.

Idea:

Implement a INet6Address_ref class which has an interface identical to INet6Address and is convertible to INet6Address (the latter has a conversion constructor taking the former as arg). This class however references an external in6_addr instead of containing one itself. This can be used in INet6SocketAddress to increase the performance of some operations.

Definition at line 141 of file INetAddressing.hh.

Public Member Functions
INet6Address	address () const
	Get printable address representation.
void	address (INet6Address const &addr)
	Change address.
unsigned	port () const
	Get port number.
void	port (unsigned port)
	Change port number.
std::string	iface () const
	Get interface name.
void	iface (std::string const &iface)
	Change interface.
Static Public Attributes
static short const	addressFamily = AF_INET6
Related Functions
(Note that these are not member functions.)
std::ostream &	operator<< (std::ostream &os, INet6SocketAddress const &addr)
	Output INet6SocketAddress instance as it's string representation.
Structors and default members
	INet6SocketAddress ()
	Create empty instance.
	INet6SocketAddress (std::string const &addr, INet6Address::Resolve_t resolve=INet6Address::ResolveINet6)
	Initialize/convert from string representation.
	INet6SocketAddress (INet6Address const &addr, unsigned port)
	Initialize from address and port.
	INet6SocketAddress (INet6Address const &addr, unsigned port, std::string const &iface)
	Initialize explicitly from given parameters.
	INet6SocketAddress (unsigned port)
	Initialize from port and set to 'unspecified' addr.
	INet6SocketAddress (const INet6SocketAddress &other)
INet6SocketAddress &	operator= (const INet6SocketAddress &other)

---

Constructor & Destructor Documentation

senf::INet6SocketAddress::
INet6SocketAddress	()

Create empty instance.

Definition at line 76 of file INetAddressing.cci.

senf::INet6SocketAddress::
INet6SocketAddress	(	std::string const &	addr,
		INet6Address::Resolve_t	resolve = INet6Address::ResolveINet6	)

Initialize/convert from string representation.

Exceptions:

	AddressSyntaxException	if the address syntax is invalid
	UnknownHostnameException	if the address cannot be resolved.

Parameters:

[in]	addr	Address to parse
[in]	resolve	If this is INet6Address::ResolveINet4, support IPv4 addresses. See INet6Address.

Definition at line 98 of file INetAddressing.cc.

senf::INet6SocketAddress::
INet6SocketAddress	(	INet6Address const &	addr,
		unsigned	port	)

Initialize from address and port.

Definition at line 80 of file INetAddressing.cci.

senf::INet6SocketAddress::
INet6SocketAddress	(	INet6Address const &	addr,
		unsigned	port,
		std::string const &	iface	)

Initialize explicitly from given parameters.

Exceptions:

AddressSyntaxException

if the given iface cannot be resolved.

Definition at line 87 of file INetAddressing.cci.

senf::INet6SocketAddress::
INet6SocketAddress	(	unsigned	port	)

Initialize from port and set to 'unspecified' addr.

The address is set to [::]

Parameters:

[in]

port

port number

Definition at line 96 of file INetAddressing.cci.

senf::INet6SocketAddress::
INet6SocketAddress	(	const INet6SocketAddress &	other	)

Definition at line 102 of file INetAddressing.cci.

---

Member Function Documentation

void senf::INet6SocketAddress::
address	(	INet6Address const &	addr	)

Change address.

Definition at line 119 of file INetAddressing.cci.

senf::INet6Address senf::INet6SocketAddress::
address	()

Get printable address representation.

Definition at line 113 of file INetAddressing.cci.

void senf::INet6SocketAddress::
iface	(	std::string const &	iface	)

Change interface.

Exceptions:

AddressSyntaxException

if the given iface cannot be resolved.

Definition at line 135 of file INetAddressing.cci.

std::string senf::INet6SocketAddress::
iface	()

Get interface name.

Definition at line 130 of file INetAddressing.cc.

senf::INet6SocketAddress & senf::INet6SocketAddress::
operator=	(	const INet6SocketAddress &	other	)

Definition at line 107 of file INetAddressing.cci.

void senf::INet6SocketAddress::
port	(	unsigned	port	)

Change port number.

Definition at line 130 of file INetAddressing.cci.

unsigned senf::INet6SocketAddress::
port	()

Get port number.

Definition at line 124 of file INetAddressing.cci.

---

Friends And Related Function Documentation

std::ostream &
operator<<	(	std::ostream &	os,
		INet6SocketAddress const &	addr	)

Output INet6SocketAddress instance as it's string representation.

---

Member Data Documentation

short const senf::INet6SocketAddress::addressFamily = AF_INET6
[static]

Definition at line 145 of file INetAddressing.hh.

---

The documentation for this class was generated from the following files:

• Protocols/INet/INetAddressing.hh
• Protocols/INet/INetAddressing.cc
• Protocols/INet/INetAddressing.cci
