senf::INet6MulticastSocketProtocol Class Reference
[Protocol Facets]

Multicast protocol facet for INet6 addressable multicast enabled sockets. More...

#include <senf/Socket/Protocols/INet/MulticastSocketProtocol.hh>

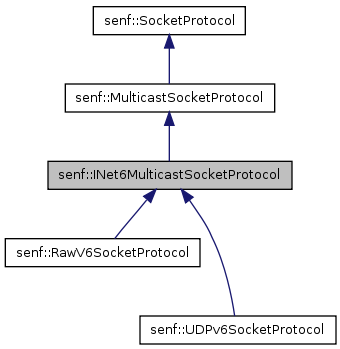

Inheritance diagram for senf::INet6MulticastSocketProtocol:

[legend]

List of all members.

---

Detailed Description

Multicast protocol facet for INet6 addressable multicast enabled sockets.

This implementation supports INet6 mapped INet4 multicast addresses. This is a linux specific extension and NOT part of the relevant RFCs.

Definition at line 162 of file MulticastSocketProtocol.hh.

Public Member Functions
void	mcAddMembership (INet6Address const &mcAddr) const
	Join multicast group on default interface.
void	mcAddMembership (INet6Address const &mcAddr, std::string const &iface) const
	join multicast group on a specific interface
void	mcDropMembership (INet6Address const &mcAddr) const
	Leave multicast group.
void	mcDropMembership (INet6Address const &mcAddr, std::string const &iface) const
	leave multicast group on a specific interface
void	mcJoinSSMSource (INet6Address const &group, INet6Address const &source, std::string const &iface) const
	join SSM multicast group
void	mcJoinSSMSource (INet6Address const &group, INet6Address const &source, int ifacei=0) const
	join SSM multicast group
void	mcLeaveSSMSource (INet6Address const &group, INet6Address const &source, std::string const &iface) const
	leave SSM multicast group

---

Member Function Documentation

void senf::INet6MulticastSocketProtocol::
mcAddMembership	(	INet6Address const &	mcAddr,
		std::string const &	iface	)

join multicast group on a specific interface

This member will add mcAddr to the list of multicast groups received. The group is joined on the given interface.

Parameters:

[in]	mcAddr	address of group to join
[in]	iface	interface name

Definition at line 243 of file MulticastSocketProtocol.cc.

void senf::INet6MulticastSocketProtocol::
mcAddMembership	(	INet6Address const &	mcAddr	)

Join multicast group on default interface.

This member will add mcAddr to the list of multicast groups received. The group is joined on the default interface.

Parameters:

[in]

mcAddr

address of group to join

Definition at line 223 of file MulticastSocketProtocol.cc.

void senf::INet6MulticastSocketProtocol::
mcDropMembership	(	INet6Address const &	mcAddr,
		std::string const &	iface	)

leave multicast group on a specific interface

This member will remove mcAddr from the list of multicast groups received. The group is left from the interface with the given local address.

Parameters:

[in]	mcAddr	address of group to leave
[in]	iface	interface name

Definition at line 289 of file MulticastSocketProtocol.cc.

void senf::INet6MulticastSocketProtocol::
mcDropMembership	(	INet6Address const &	mcAddr	)

Leave multicast group.

This member will remove mcAddr from the list of multicast groups received. The group is left from the default interface.

Parameters:

[in]

mcAddr

address of group to leave

Definition at line 268 of file MulticastSocketProtocol.cc.

void senf::INet6MulticastSocketProtocol::
mcJoinSSMSource	(	INet6Address const &	group,
		INet6Address const &	source,
		int	ifacei = 0	)

join SSM multicast group

This call will join the multicast group group for traffic from source. A single group may be joined multiple times on different sources.

Parameters:

[in]	group	multicast group to join
[in]	source	SSM multicast source to join the group on
[in]	ifacei	optional interface index to join the group on

Definition at line 354 of file MulticastSocketProtocol.cc.

void senf::INet6MulticastSocketProtocol::
mcJoinSSMSource	(	INet6Address const &	group,
		INet6Address const &	source,
		std::string const &	iface	)

join SSM multicast group

This call will join the multicast group group for traffic from source. A single group may be joined multiple times on different sources.

Parameters:

[in]	group	multicast group to join
[in]	source	SSM multicast source to join the group on
[in]	iface	interface to join the group on. If set to the empty string, use the default interface.

Definition at line 346 of file MulticastSocketProtocol.cc.

void senf::INet6MulticastSocketProtocol::
mcLeaveSSMSource	(	INet6Address const &	group,
		INet6Address const &	source,
		std::string const &	iface	)

leave SSM multicast group

This call will leave the multicast group group for traffic from source.

Parameters:

[in]	group	multicast group to leave
[in]	source	SSM multicast source to leave the group from
[in]	iface	interface to leave the group on

Definition at line 362 of file MulticastSocketProtocol.cc.

---

The documentation for this class was generated from the following files:

• Protocols/INet/MulticastSocketProtocol.hh
• Protocols/INet/MulticastSocketProtocol.cc
