senf::Int24Parser Struct Reference
[Integer parsers]
Parse 24bit signed byte aligned integer. More...
#include <senf/Packets/IntParser.hh>

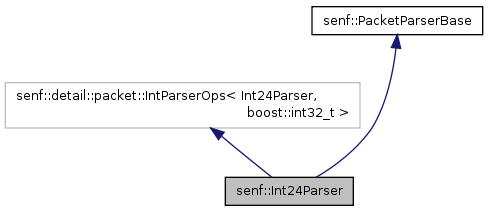

Inheritance diagram for senf::Int24Parser:
Detailed Description
Parse 24bit signed byte aligned integer.- See also:
- Integer parsers
Definition at line 237 of file IntParser.hh.
Public Types |
|
| typedef boost::int32_t | value_type |
Public Member Functions |
|
| Int24Parser (data_iterator i, state_type s) | |
| value_type | value () const |
| void | value (value_type v) |
| Int24Parser const & | operator= (value_type other) |
Static Public Attributes |
|
| static size_type const | fixed_bytes = 3 |
| static value_type const | min_value = -8388608 |
| static value_type const | max_value = 8388607 |
Related Functions |
|
| (Note that these are not member functions.) |
|
| std::ostream & | operator<< (std::ostream &os, Int24Parser const &i) |
| Write parsed value to stream. |
|
Member Typedef Documentation
| typedef boost::int32_t senf::Int24Parser:: | ||||
| value_type | ||||
Reimplemented from senf::detail::packet::IntParserOps< Int24Parser, boost::int32_t >.
Definition at line 245 of file IntParser.hh.
Constructor & Destructor Documentation
| senf::Int24Parser:: | ||||
| Int24Parser | ( | data_iterator | i, | |
| state_type | s | ) | ||
Definition at line 241 of file IntParser.hh.
Member Function Documentation
| Int24Parser const& senf::Int24Parser:: | ||||
| operator= | ( | value_type | other | ) |
Definition at line 253 of file IntParser.hh.
| void senf::Int24Parser:: | ||||
| value | ( | value_type | v | ) |
Definition at line 252 of file IntParser.hh.
| value_type senf::Int24Parser:: | ||||
| value | () | |||
Definition at line 250 of file IntParser.hh.
Friends And Related Function Documentation
| std::ostream & | ||||
| operator<< | ( | std::ostream & | os, | |
| Int24Parser const & | i | ) | ||
Write parsed value to stream.
Definition at line 258 of file IntParser.hh.
Member Data Documentation
| size_type const senf::Int24Parser::fixed_bytes = 3 | ||||
| [static] | ||||
Definition at line 246 of file IntParser.hh.
| value_type const senf::Int24Parser::max_value = 8388607 | ||||
| [static] | ||||
Definition at line 248 of file IntParser.hh.
| value_type const senf::Int24Parser::min_value = -8388608 | ||||
| [static] | ||||
Definition at line 247 of file IntParser.hh.
The documentation for this struct was generated from the following file:
