senf::Int16Parser Struct Reference
[Integer parsers]
Parse 16bit signed byte aligned integer. More...
#include <senf/Packets/IntParser.hh>

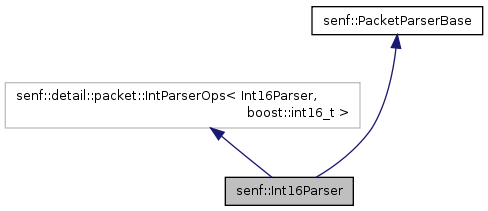

Inheritance diagram for senf::Int16Parser:
Detailed Description
Parse 16bit signed byte aligned integer.- See also:
- Integer parsers
Definition at line 127 of file IntParser.hh.
Public Types |
|
| typedef boost::int16_t | value_type |
Public Member Functions |
|
| Int16Parser (data_iterator i, state_type s) | |
| value_type | value () const |
| void | value (value_type v) |
| Int16Parser const & | operator= (value_type other) |
Static Public Attributes |
|
| static size_type const | fixed_bytes = 2 |
| static value_type const | min_value = -32768 |
| static value_type const | max_value = 32767 |
Related Functions |
|
| (Note that these are not member functions.) |
|
| std::ostream & | operator<< (std::ostream &os, Int16Parser const &i) |
| Write parsed value to stream. |
|
Member Typedef Documentation
| typedef boost::int16_t senf::Int16Parser:: | ||||
| value_type | ||||
Reimplemented from senf::detail::packet::IntParserOps< Int16Parser, boost::int16_t >.
Definition at line 135 of file IntParser.hh.
Constructor & Destructor Documentation
| senf::Int16Parser:: | ||||
| Int16Parser | ( | data_iterator | i, | |
| state_type | s | ) | ||
Definition at line 131 of file IntParser.hh.
Member Function Documentation
| Int16Parser const& senf::Int16Parser:: | ||||
| operator= | ( | value_type | other | ) |
Definition at line 143 of file IntParser.hh.
| void senf::Int16Parser:: | ||||
| value | ( | value_type | v | ) |
Definition at line 142 of file IntParser.hh.
| value_type senf::Int16Parser:: | ||||
| value | () | |||
Definition at line 141 of file IntParser.hh.
Friends And Related Function Documentation
| std::ostream & | ||||
| operator<< | ( | std::ostream & | os, | |
| Int16Parser const & | i | ) | ||
Write parsed value to stream.
Definition at line 148 of file IntParser.hh.
Member Data Documentation
| size_type const senf::Int16Parser::fixed_bytes = 2 | ||||
| [static] | ||||
Definition at line 136 of file IntParser.hh.
| value_type const senf::Int16Parser::max_value = 32767 | ||||
| [static] | ||||
Definition at line 138 of file IntParser.hh.
| value_type const senf::Int16Parser::min_value = -32768 | ||||
| [static] | ||||
Definition at line 137 of file IntParser.hh.
The documentation for this struct was generated from the following file:
