80211Bundle/radiotap/radiotap.h File Reference

#include <stdint.h>
Include dependency graph for radiotap.h:

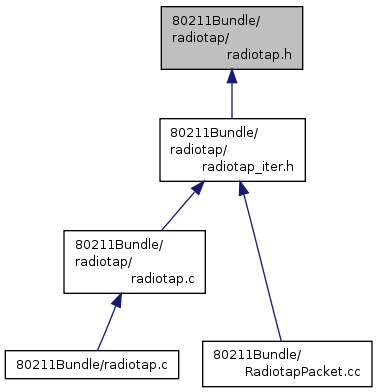

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.


Classes
struct   ieee80211_radiotap_header

Defines
#define  PKTHDR_RADIOTAP_VERSION   0
#define  IEEE80211_CHAN_TURBO   0x0010
#define  IEEE80211_CHAN_CCK   0x0020
#define  IEEE80211_CHAN_OFDM   0x0040
#define  IEEE80211_CHAN_2GHZ   0x0080
#define  IEEE80211_CHAN_5GHZ   0x0100
#define  IEEE80211_CHAN_PASSIVE   0x0200
#define  IEEE80211_CHAN_DYN   0x0400
#define  IEEE80211_CHAN_GFSK   0x0800
#define  IEEE80211_RADIOTAP_F_CFP   0x01
#define  IEEE80211_RADIOTAP_F_SHORTPRE   0x02
#define  IEEE80211_RADIOTAP_F_WEP   0x04
#define  IEEE80211_RADIOTAP_F_FRAG   0x08
#define  IEEE80211_RADIOTAP_F_FCS   0x10
#define  IEEE80211_RADIOTAP_F_DATAPAD   0x20
#define  IEEE80211_RADIOTAP_F_BADFCS   0x40
#define  IEEE80211_RADIOTAP_F_RX_BADPLCP   0x0002
#define  IEEE80211_RADIOTAP_F_TX_FAIL   0x0001
#define  IEEE80211_RADIOTAP_F_TX_CTS   0x0002
#define  IEEE80211_RADIOTAP_F_TX_RTS   0x0004

Enumerations
enum   ieee80211_radiotap_type {
  IEEE80211_RADIOTAP_TSFT = 0, IEEE80211_RADIOTAP_FLAGS = 1, IEEE80211_RADIOTAP_RATE = 2, IEEE80211_RADIOTAP_CHANNEL = 3,
  IEEE80211_RADIOTAP_FHSS = 4, IEEE80211_RADIOTAP_DBM_ANTSIGNAL = 5, IEEE80211_RADIOTAP_DBM_ANTNOISE = 6, IEEE80211_RADIOTAP_LOCK_QUALITY = 7,
  IEEE80211_RADIOTAP_TX_ATTENUATION = 8, IEEE80211_RADIOTAP_DB_TX_ATTENUATION = 9, IEEE80211_RADIOTAP_DBM_TX_POWER = 10, IEEE80211_RADIOTAP_ANTENNA = 11,
  IEEE80211_RADIOTAP_DB_ANTSIGNAL = 12, IEEE80211_RADIOTAP_DB_ANTNOISE = 13, IEEE80211_RADIOTAP_RX_FLAGS = 14, IEEE80211_RADIOTAP_TX_FLAGS = 15,
  IEEE80211_RADIOTAP_RTS_RETRIES = 16, IEEE80211_RADIOTAP_DATA_RETRIES = 17, IEEE80211_RADIOTAP_RADIOTAP_NAMESPACE = 29, IEEE80211_RADIOTAP_VENDOR_NAMESPACE = 30,
  IEEE80211_RADIOTAP_EXT = 31
}

Define Documentation

#define
IEEE80211_CHAN_2GHZ   0x0080

Definition at line 209 of file radiotap.h.

#define
IEEE80211_CHAN_5GHZ   0x0100

Definition at line 210 of file radiotap.h.

#define
IEEE80211_CHAN_CCK   0x0020

Definition at line 207 of file radiotap.h.

#define
IEEE80211_CHAN_DYN   0x0400

Definition at line 212 of file radiotap.h.

#define
IEEE80211_CHAN_GFSK   0x0800

Definition at line 213 of file radiotap.h.

#define
IEEE80211_CHAN_OFDM   0x0040

Definition at line 208 of file radiotap.h.

#define
IEEE80211_CHAN_PASSIVE   0x0200

Definition at line 211 of file radiotap.h.

#define
IEEE80211_CHAN_TURBO   0x0010

Definition at line 206 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_BADFCS   0x40

Definition at line 234 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_CFP   0x01

Definition at line 216 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_DATAPAD   0x20

Definition at line 230 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_FCS   0x10

Definition at line 229 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_FRAG   0x08

Definition at line 226 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_RX_BADPLCP   0x0002

Definition at line 237 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_SHORTPRE   0x02

Definition at line 219 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_TX_CTS   0x0002

Definition at line 242 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_TX_FAIL   0x0001

Definition at line 240 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_TX_RTS   0x0004

Definition at line 243 of file radiotap.h.

#define
IEEE80211_RADIOTAP_F_WEP   0x04

Definition at line 223 of file radiotap.h.

#define
PKTHDR_RADIOTAP_VERSION   0

Definition at line 41 of file radiotap.h.

Enumeration Type Documentation

enum
ieee80211_radiotap_type
Enumerator:
IEEE80211_RADIOTAP_TSFT
IEEE80211_RADIOTAP_FLAGS
IEEE80211_RADIOTAP_RATE
IEEE80211_RADIOTAP_CHANNEL
IEEE80211_RADIOTAP_FHSS
IEEE80211_RADIOTAP_DBM_ANTSIGNAL
IEEE80211_RADIOTAP_DBM_ANTNOISE
IEEE80211_RADIOTAP_LOCK_QUALITY
IEEE80211_RADIOTAP_TX_ATTENUATION
IEEE80211_RADIOTAP_DB_TX_ATTENUATION
IEEE80211_RADIOTAP_DBM_TX_POWER
IEEE80211_RADIOTAP_ANTENNA
IEEE80211_RADIOTAP_DB_ANTSIGNAL
IEEE80211_RADIOTAP_DB_ANTNOISE
IEEE80211_RADIOTAP_RX_FLAGS
IEEE80211_RADIOTAP_TX_FLAGS
IEEE80211_RADIOTAP_RTS_RETRIES
IEEE80211_RADIOTAP_DATA_RETRIES
IEEE80211_RADIOTAP_RADIOTAP_NAMESPACE
IEEE80211_RADIOTAP_VENDOR_NAMESPACE
IEEE80211_RADIOTAP_EXT

Definition at line 179 of file radiotap.h.
