senf::PacketInterpreterBase Class Reference

Internal: Base packet interpreter class. More...

#include <senf/Packets/PacketInterpreter.hh>

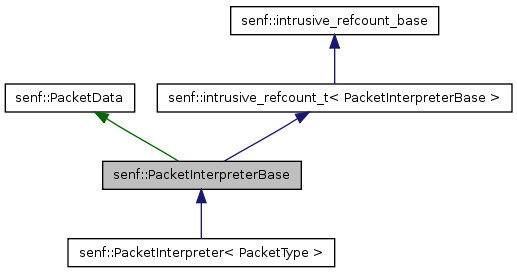

Inheritance diagram for senf::PacketInterpreterBase:

[legend]

List of all members.

Detailed Description

Internal: Base packet interpreter class.

For internal use only.

This is the base class for the persistent interpreter. This class encapsulates all the functionality accessible via the packet handle, most handle operations are just forwarded.

Definition at line 53 of file PacketInterpreter.hh.


Classes
struct	Factory
	Internal: Abstract packet factory. More...
Public Types
enum	Append_t { Append }
enum	Prepend_t { Prepend }
typedef senf::detail::packet::smart_pointer < PacketInterpreterBase > ::ptr_t	ptr
typedef senf::detail::packet::iterator	iterator
typedef senf::detail::packet::const_iterator	const_iterator
typedef senf::detail::packet::size_type	size_type
typedef senf::detail::packet::difference_type	difference_type
typedef senf::detail::packet::byte	byte
typedef boost::iterator_range < iterator >	range
typedef boost::optional < boost::iterator_range < iterator > >	optional_range
typedef optional_range	no_range
typedef Factory const *	factory_t
Structors and default members
virtual	~PacketInterpreterBase ()
ptr	clone ()
static factory_t	no_factory ()
Interpreter chain access
ptr	next ()
ptr	prev ()
ptr	first ()
ptr	last ()
template<class Type >
PacketInterpreter< Type >::ptr	parseNextAs ()
ptr	parseNextAs (factory_t factory)
template<class Type >
bool	is ()
template<class Type >
PacketInterpreter< Type >::ptr	as ()
ptr	append (ptr packet)
void	reparse ()
Data access
PacketData &	data ()
Annotations
template<class Annotation >
Annotation &	annotation ()
void	clearAnnotations ()
Access to the abstract interface
optional_range	nextPacketRange ()
void	finalizeThis ()
void	finalizeTo (ptr other)
void	dump (std::ostream &os)
TypeIdValue	typeId ()
factory_t	factory ()
factory_t	nextPacketType ()
Protected Member Functions
	PacketInterpreterBase (detail::PacketImpl *impl, iterator b, iterator e, Append_t)
	PacketInterpreterBase (detail::PacketImpl *impl, iterator b, iterator e, Prepend_t)
	PacketInterpreterBase (detail::PacketImpl *impl, iterator b, iterator e, ptr before)
ptr	appendClone (detail::PacketImpl *impl, iterator base, iterator new_base)
ptr	appendClone (detail::PacketImpl *impl, range r)
Friends
void	senf::intrusive_ptr_add_ref (PacketInterpreterBase const *)
void	senf::intrusive_ptr_release (PacketInterpreterBase const *)

Member Typedef Documentation

typedef senf::detail::packet::byte senf::PacketInterpreterBase::
byte

Reimplemented from senf::PacketData.

Definition at line 69 of file PacketInterpreter.hh.

typedef senf::detail::packet::const_iterator senf::PacketInterpreterBase::
const_iterator

Reimplemented from senf::PacketData.

Definition at line 66 of file PacketInterpreter.hh.

typedef senf::detail::packet::difference_type senf::PacketInterpreterBase::
difference_type

Reimplemented from senf::PacketData.

Definition at line 68 of file PacketInterpreter.hh.

typedef Factory const* senf::PacketInterpreterBase::
factory_t

Definition at line 122 of file PacketInterpreter.hh.

typedef senf::detail::packet::iterator senf::PacketInterpreterBase::
iterator

Reimplemented from senf::PacketData.

Definition at line 65 of file PacketInterpreter.hh.

typedef optional_range senf::PacketInterpreterBase::
no_range

Definition at line 73 of file PacketInterpreter.hh.

typedef boost::optional< boost::iterator_range<iterator> > senf::PacketInterpreterBase::
optional_range

Definition at line 72 of file PacketInterpreter.hh.

typedef senf::detail::packet::smart_pointer< PacketInterpreterBase>::ptr_t senf::PacketInterpreterBase::
ptr

Reimplemented in senf::PacketInterpreter< PacketType >.

Definition at line 63 of file PacketInterpreter.hh.

typedef boost::iterator_range<iterator> senf::PacketInterpreterBase::
range

Definition at line 71 of file PacketInterpreter.hh.

typedef senf::detail::packet::size_type senf::PacketInterpreterBase::
size_type

Reimplemented from senf::PacketData.

Definition at line 67 of file PacketInterpreter.hh.

Member Enumeration Documentation

enum senf::PacketInterpreterBase::
Append_t

Enumerator:

Append

Definition at line 75 of file PacketInterpreter.hh.

enum senf::PacketInterpreterBase::
Prepend_t

Enumerator:

Prepend

Definition at line 76 of file PacketInterpreter.hh.

Constructor & Destructor Documentation

senf::PacketInterpreterBase::
~PacketInterpreterBase	()

Definition at line 40 of file PacketInterpreter.cc.

senf::PacketInterpreterBase::
PacketInterpreterBase	(	detail::PacketImpl *	impl,
		iterator	b,
		iterator	e,
		Append_t		)

Definition at line 111 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::
PacketInterpreterBase	(	detail::PacketImpl *	impl,
		iterator	b,
		iterator	e,
		Prepend_t		)

Definition at line 119 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::
PacketInterpreterBase	(	detail::PacketImpl *	impl,
		iterator	b,
		iterator	e,
		ptr	before	)

Definition at line 127 of file PacketInterpreter.cci.

Member Function Documentation

template<class Annotation >

Annotation & senf::PacketInterpreterBase::
annotation	()

Definition at line 54 of file PacketInterpreter.cti.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
append	(	ptr	packet	)

Definition at line 55 of file PacketInterpreter.cc.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
appendClone	(	detail::PacketImpl *	impl,
		range	r	)

Definition at line 143 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
appendClone	(	detail::PacketImpl *	impl,
		iterator	base,
		iterator	new_base	)

Definition at line 136 of file PacketInterpreter.cci.

template<class Type >

senf::PacketInterpreter< Type >::ptr senf::PacketInterpreterBase::
as	()

Definition at line 46 of file PacketInterpreter.cti.

void senf::PacketInterpreterBase::
clearAnnotations	()

Definition at line 101 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
clone	()

Reimplemented in senf::PacketInterpreter< PacketType >.

Definition at line 43 of file PacketInterpreter.cc.

senf::PacketData & senf::PacketInterpreterBase::
data	()

Definition at line 73 of file PacketInterpreter.cci.

void senf::PacketInterpreterBase::
dump	(	std::ostream &	os	)

Definition at line 82 of file PacketInterpreter.cc.

senf::PacketInterpreterBase::factory_t senf::PacketInterpreterBase::
factory	()

Reimplemented in senf::PacketInterpreter< PacketType >.

Definition at line 91 of file PacketInterpreter.cci.

void senf::PacketInterpreterBase::
finalizeThis	()

Definition at line 99 of file PacketInterpreter.cc.

void senf::PacketInterpreterBase::
finalizeTo	(	ptr	other	)

Definition at line 104 of file PacketInterpreter.cc.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
first	()

Definition at line 55 of file PacketInterpreter.cci.

template<class Type >

bool senf::PacketInterpreterBase::
is	()

Definition at line 39 of file PacketInterpreter.cti.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
last	()

Definition at line 60 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
next	()

Definition at line 45 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::optional_range senf::PacketInterpreterBase::
nextPacketRange	()

Definition at line 81 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::factory_t senf::PacketInterpreterBase::
nextPacketType	()

Definition at line 96 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::factory_t senf::PacketInterpreterBase::
no_factory	()

Definition at line 38 of file PacketInterpreter.cci.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
parseNextAs	(	factory_t	factory	)

Definition at line 66 of file PacketInterpreter.cci.

template<class Type >

senf::PacketInterpreter< Type >::ptr senf::PacketInterpreterBase::
parseNextAs	()

Definition at line 41 of file PacketInterpreter.ct.

senf::PacketInterpreterBase::ptr senf::PacketInterpreterBase::
prev	()

Definition at line 50 of file PacketInterpreter.cci.

void senf::PacketInterpreterBase::
reparse	()

Definition at line 74 of file PacketInterpreter.cc.

senf::TypeIdValue senf::PacketInterpreterBase::
typeId	()

Definition at line 86 of file PacketInterpreter.cci.

Friends And Related Function Documentation

void senf::
intrusive_ptr_add_ref	(	PacketInterpreterBase const *	)

void senf::
intrusive_ptr_release	(	PacketInterpreterBase const *	)

The documentation for this class was generated from the following files:
